RS-24 Rotator Switch 2×4

RS-24 Rotator Switch 2x4
RS-24 Rotator Switch 2x4 - Image 2
RS-24 Rotator Switch 2x4 - Image 3

Additional information

Additional information

Rotator Switch 2×4 If you have more than one radio room (Shack) and/or more than one Rotator on your directional antennas, then Rotator Switch RS-24 is the solution. With it you will use only one controller on the table and it will be able to control till four antenna rotators.
  • The RS-24 can select between four rotators using only one controller for each shack.
  • The system can use till two controllers.
  • One interlock system don’t permit connections for rotators in use on other shack.
  • It is possible to automate all station.
  • On systems where the Hamplus MBD-8E / F/ G or MBD-12F is installed, the rotator assigned to each antenna are called on each change.
  • The RS-24 comutates eight wires.
Specifications:
Size:
 24,5 cm width, 7cm height and 25,5cm deep
Power suply :
 14 volts
Max. switch current:
5 amp.
Switching:
 8 Wires

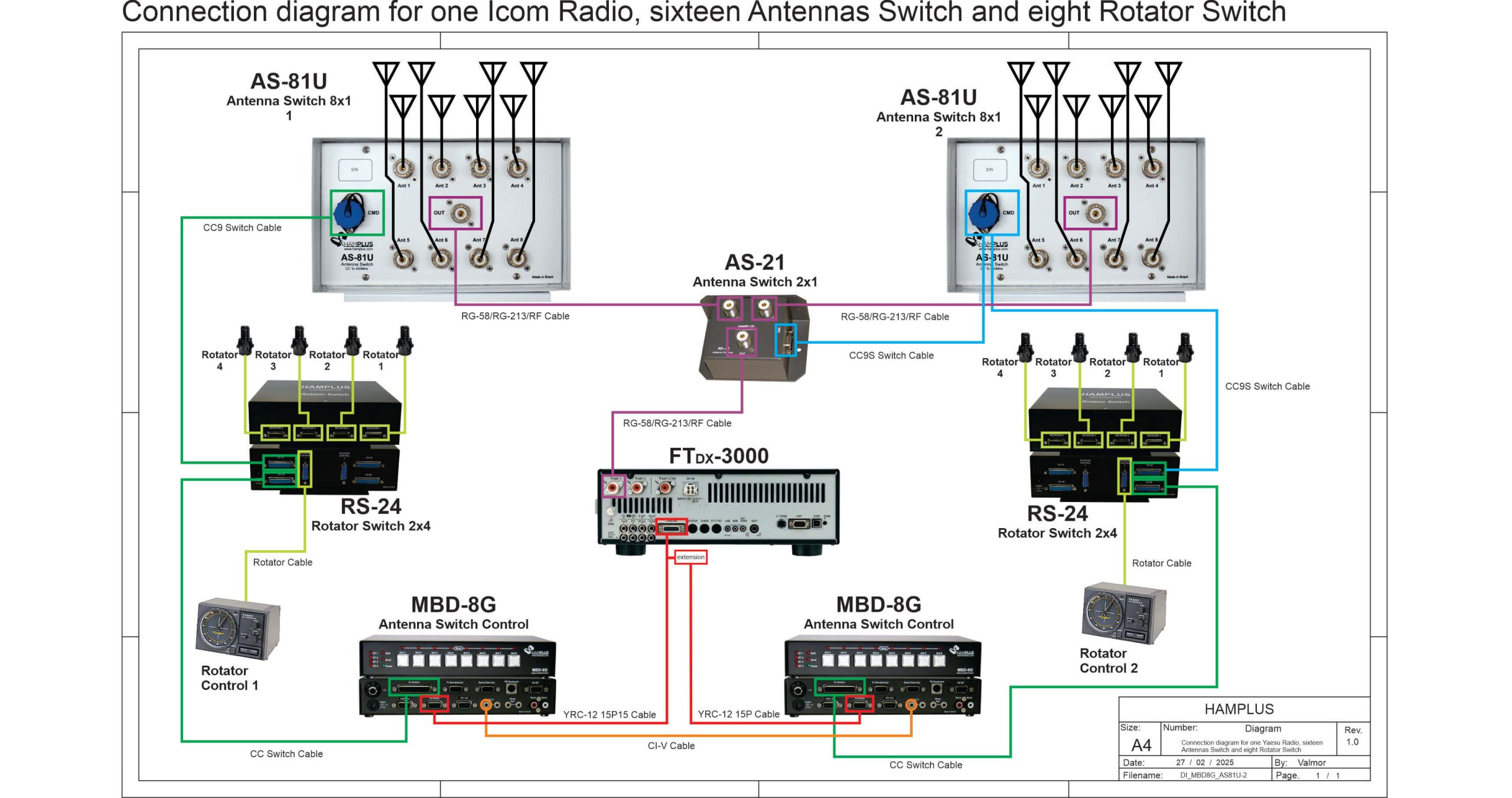

Wiring diagram exemples:
No data was found
Category: Rotator Switches

$519.00

In stock

Simplify antenna control with the RS-24 Rotator Switch. Manage up to four rotators with one controller, ensuring efficiency and automation in your shack.
Add to wish list

Reviews

Description

Rotator Switch 2×4

If you have more than one radio room (Shack) and/or more than one Rotator on your directional antennas, then Rotator Switch RS-24 is the solution. With it you will use only one controller on the table and it will be able to control till four antenna rotators.



  • The RS-24 can select between four rotators using only one controller for each shack.
  • The system can use till two controllers.
  • One interlock system don’t permit connections for rotators in use on other shack.
  • It is possible to automate all station.
  • On systems where the Hamplus MBD-8E / F/ G or MBD-12F is installed, the rotator assigned to each antenna are called on each change.
  • The RS-24 comutates eight wires.

Specifications:

Size:
 24,5 cm width, 7cm height and 25,5cm deep
Power suply :
 14 volts
Max. switch current:
5 amp.
Switching:
 8 Wires



Wiring diagram exemples:
