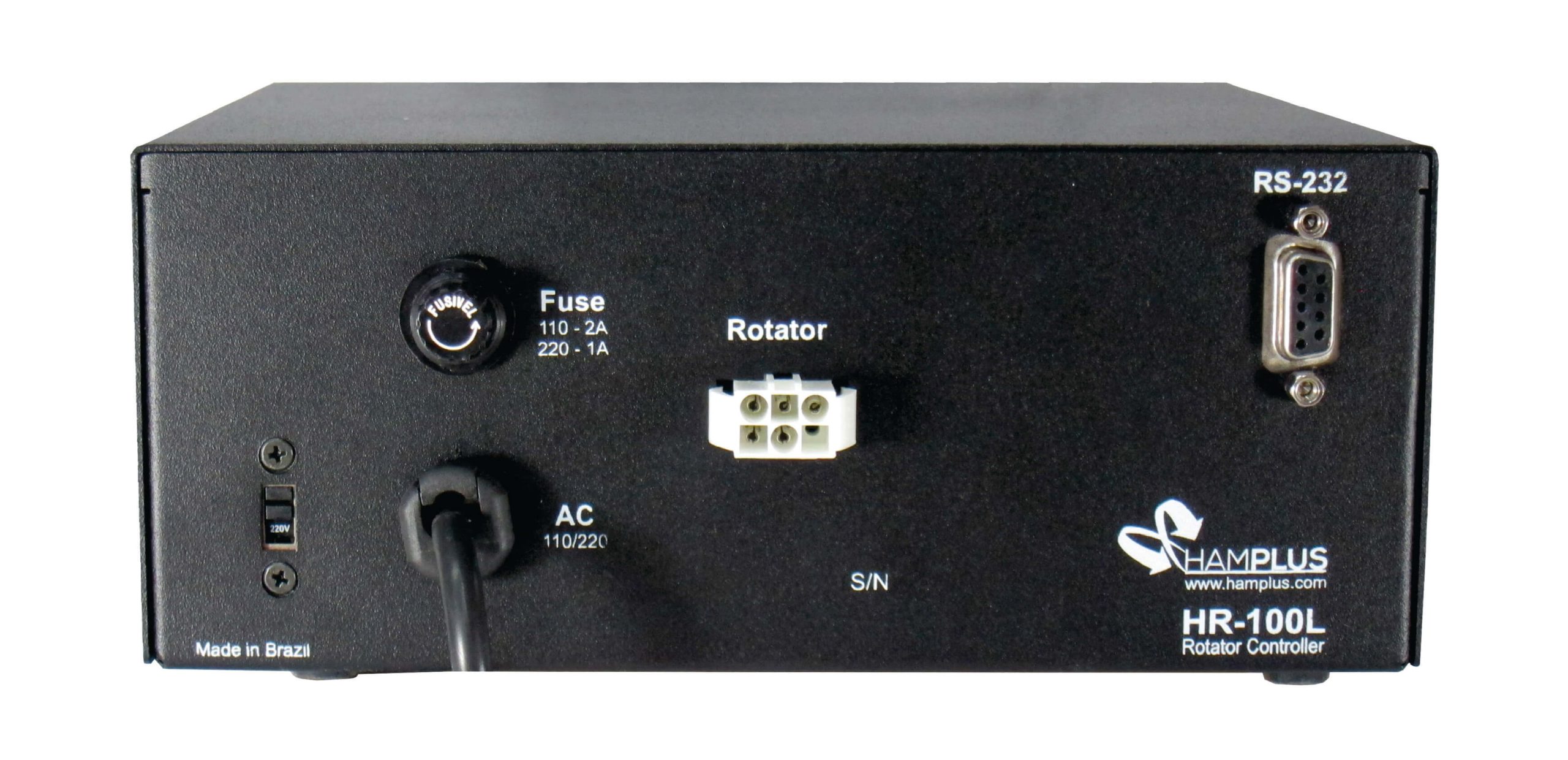

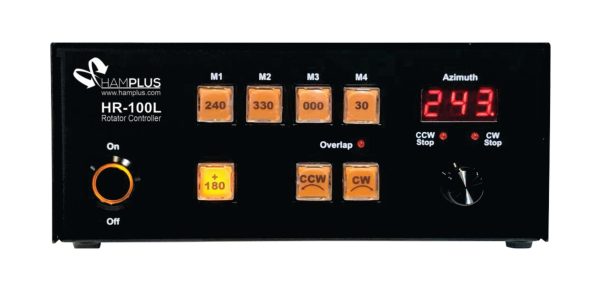

HR-100L Rotator Controller

Additional information

Weight	3 kg
Dimensions	31 × 33 × 15 cm

Four Memory Buttons
One Long Patn Button (+180)
Commands for Stroke Limit, Off Set and General Reset.

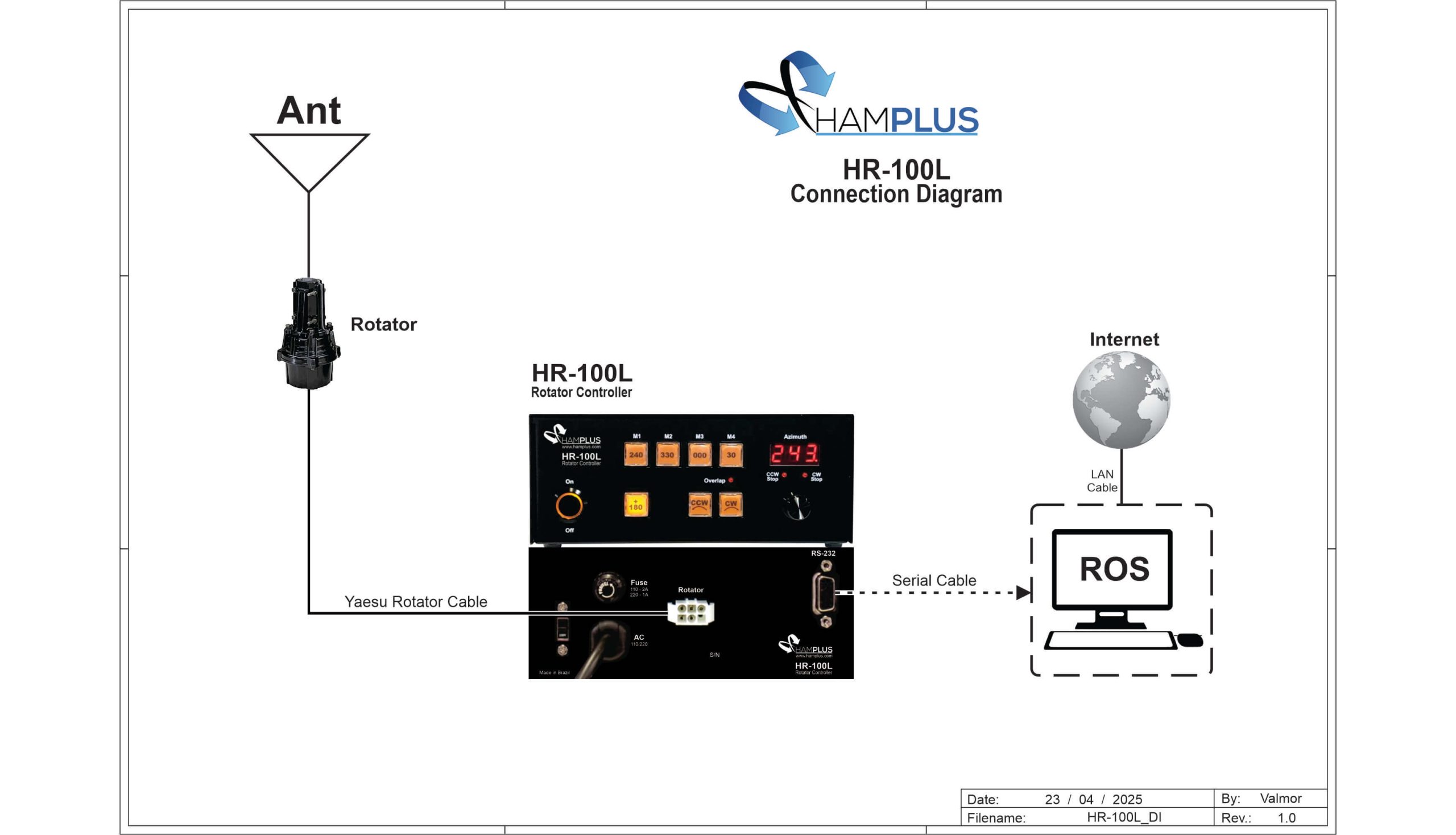

Computer Interface
Uses Yaesu protocol for rotators
Applicable to any rotator with 24V DC motor and potentiometer direction indicator
100% compatible with Yaesu rotators (except G-450 with AC motor)

Operation Manual HR-100L - V.1.0 English

No data was found

Category: Controllers

Rotator Controller with PC interface

$399.00

In stock

HR-100L use Yaesu Protocol for Rotators

Add to wish list

Reviews

Description

Four Memory Buttons
One Long Patn Button (+180)
Commands for Stroke Limit, Off Set and General Reset.
Computer Interface
Uses Yaesu protocol for rotators

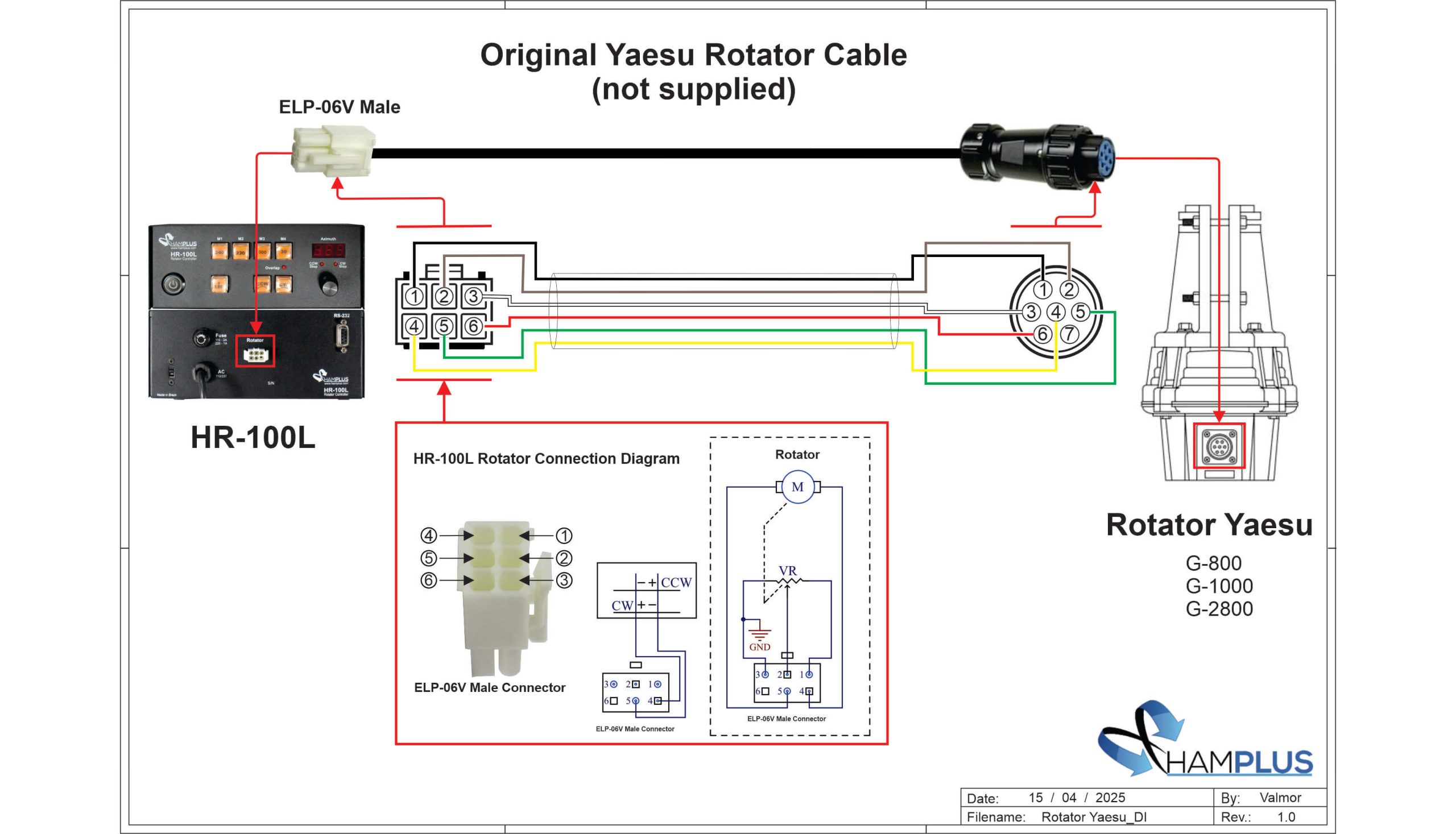

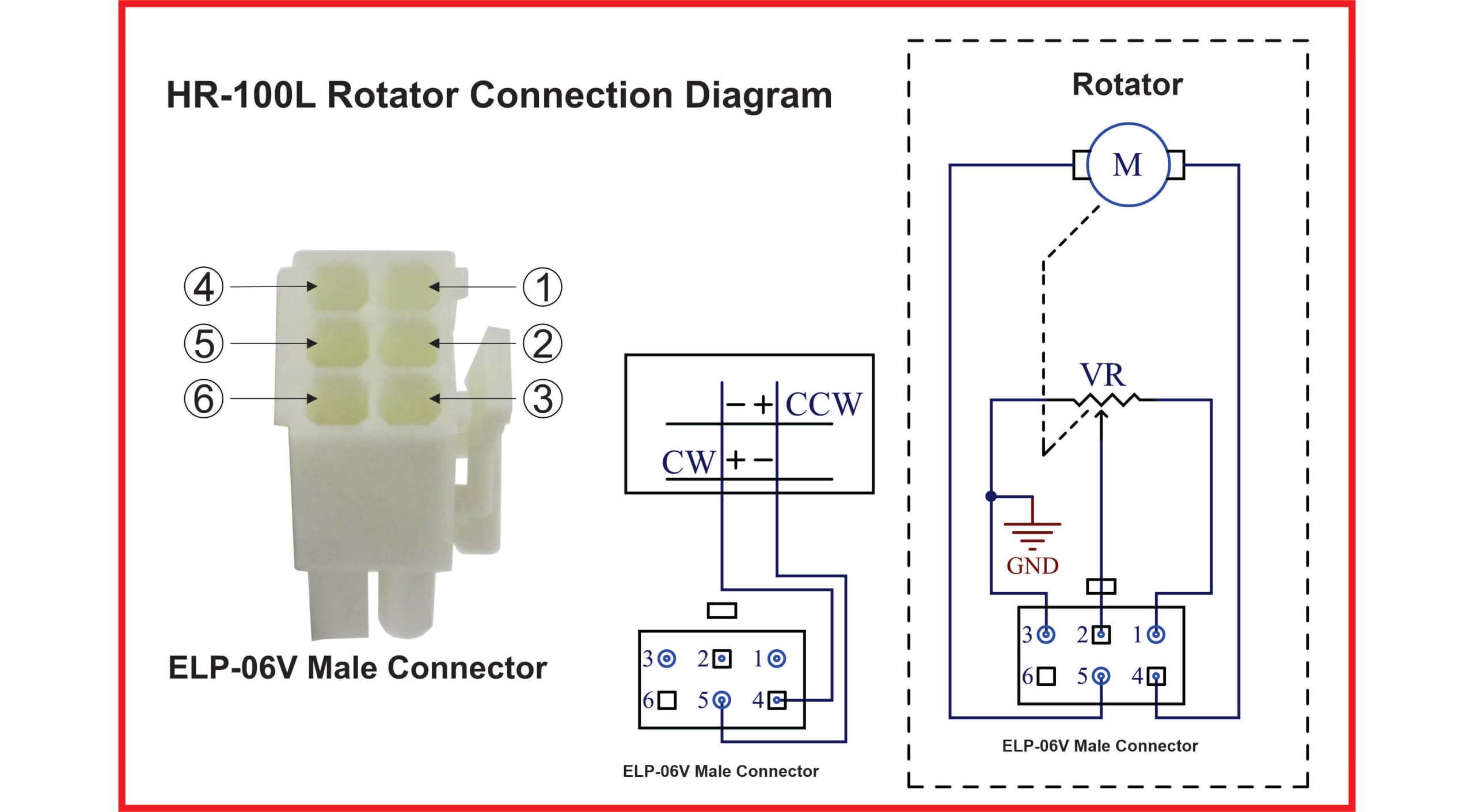

Applicable to any rotator with 24V DC motor and potentiometer direction indicator
100% compatible with Yaesu rotators (except G-450 with AC motor)

Additional information

Weight	3 kg
Dimensions	31 × 33 × 15 cm
