AS-1204F HF 6m Antenna Switch 12 Ant x 4 Radios

Additional information

Additional information

Weight 4.9 kg
Dimensions 55 × 36 × 6 cm

Worst case Isolation Measurements

Specification:
Size:
Width 45 cm – Height 5 cm – Deep 28 cm
Power Supply:
D.C. 14 Volts + or – 20% drain about 200mA
Max. SSB power allowed:
5000 Watts P.E.P. with S.W.R. equal or less than 1.5:1
Frequency of operation:
D.C. to 54MHz
Time delay to switch:
Equal or less than 12ms
Insertion loss:
Equal or less than 0,2dB
Port Isolation worst conditions measurements:
Equal or less than -71dB to 30MHz


No data was found

$1,395.00

Only 1 left in stock (can be backordered)

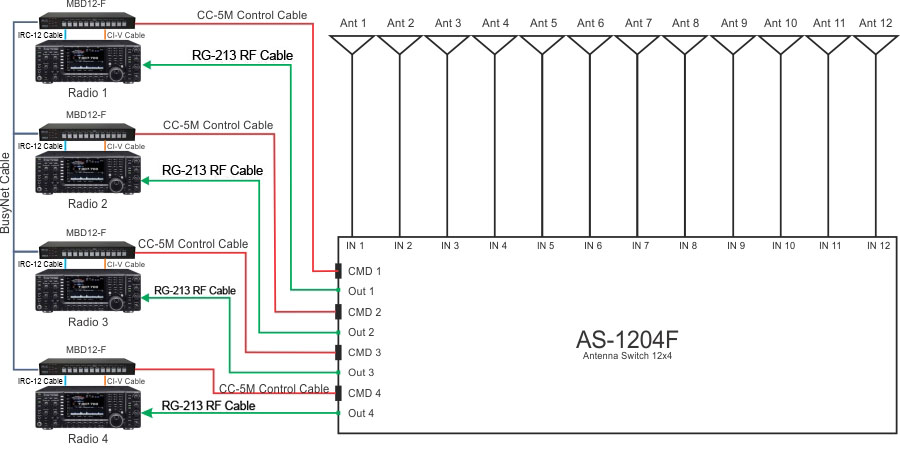

  • Antenna Switch with 12 inputs by four output remotely controlled.
  • Aluminum cabinet painted in the dark gray color, having UHF type (SO-239), or N connectors for the R.F connections and DB-25 for remote control.
  • All antenna inputs are switched to ground when not in use.
  • When the power are switched off, all antenna inputs are routed to ground for protection purposes.
Choose Connectors
N Connector
$0.00
N Connector
U Connector
$0.00
U Connector

Only 1 left in stock (can be backordered)

                  Choose Switch Cables

Reviews

Description

Specification:

Size:
Width 45 cm – Height 5 cm – Deep 28 cm
Power Supply:
D.C. 14 Volts + or – 20% drain about 200mA
Max. SSB power allowed:
5000 Watts P.E.P. with S.W.R. equal or less than 1.5:1
Frequency of operation:
D.C. to 54MHz
Time delay to switch:
Equal or less than 12ms
Insertion loss:
Equal or less than 0,2dB
Port Isolation worst conditions measurements:
Equal or less than -71dB to 30MHz









Additional information

Weight 4.9 kg
Dimensions 55 × 36 × 6 cm

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
